odroid-power-mate/example/logger/README.md

Power Consumption Logger Example

Based on this script, you can monitor power consumption and implement graph plotting.

How to Run the Script

Install Python Virtual Environment

sudo apt install virtualenv
virtualenv venv
source venv/bin/activate

Install require package

pip install grpcio-tools requests websockets protobuf pandas matplotlib

Build status_pb2.py

python -m grpc_tools.protoc -I ../../proto --python_out=. status.proto

Execute script

Power consumption collection

# python3 logger.py -u <username> -o <name.csv> -p <password> <address>
python3 logger.py -u admin -p password -o test.csv 192.168.30.5

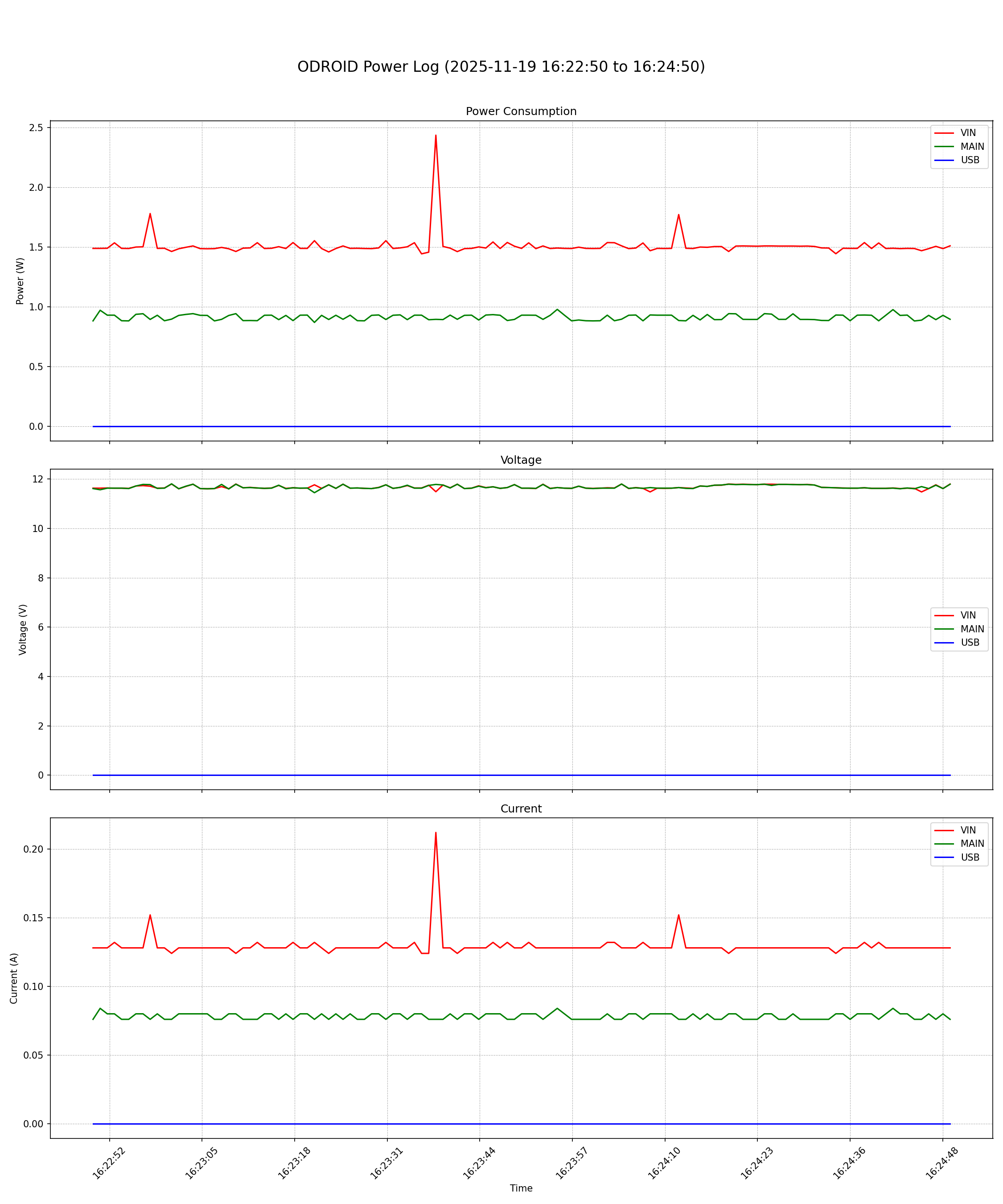

Plot data

python3 csv_2_plot.py test.csv plot.png [--type power voltage current]
