Power Consumption Logger Example
Based on this script, you can monitor power consumption and implement graph plotting.
How to Run the Script
Install Python Virtual Environment
git clone https://github.com/hardkernel/odroid-powermate.git
cd odroid-powermate/example/logger
sudo apt install virtualenv
virtualenv venv
source venv/bin/activate
Install require package
pip install grpcio-tools requests websockets protobuf pandas matplotlib
Build status_pb2.py
python -m grpc_tools.protoc -I ../../proto --python_out=. status.proto
Execute script
Power consumption collection
# python3 logger.py -u <username> -o <name.csv> -p <password> <address>
python3 logger.py -u admin -p password -o test.csv 192.168.30.5

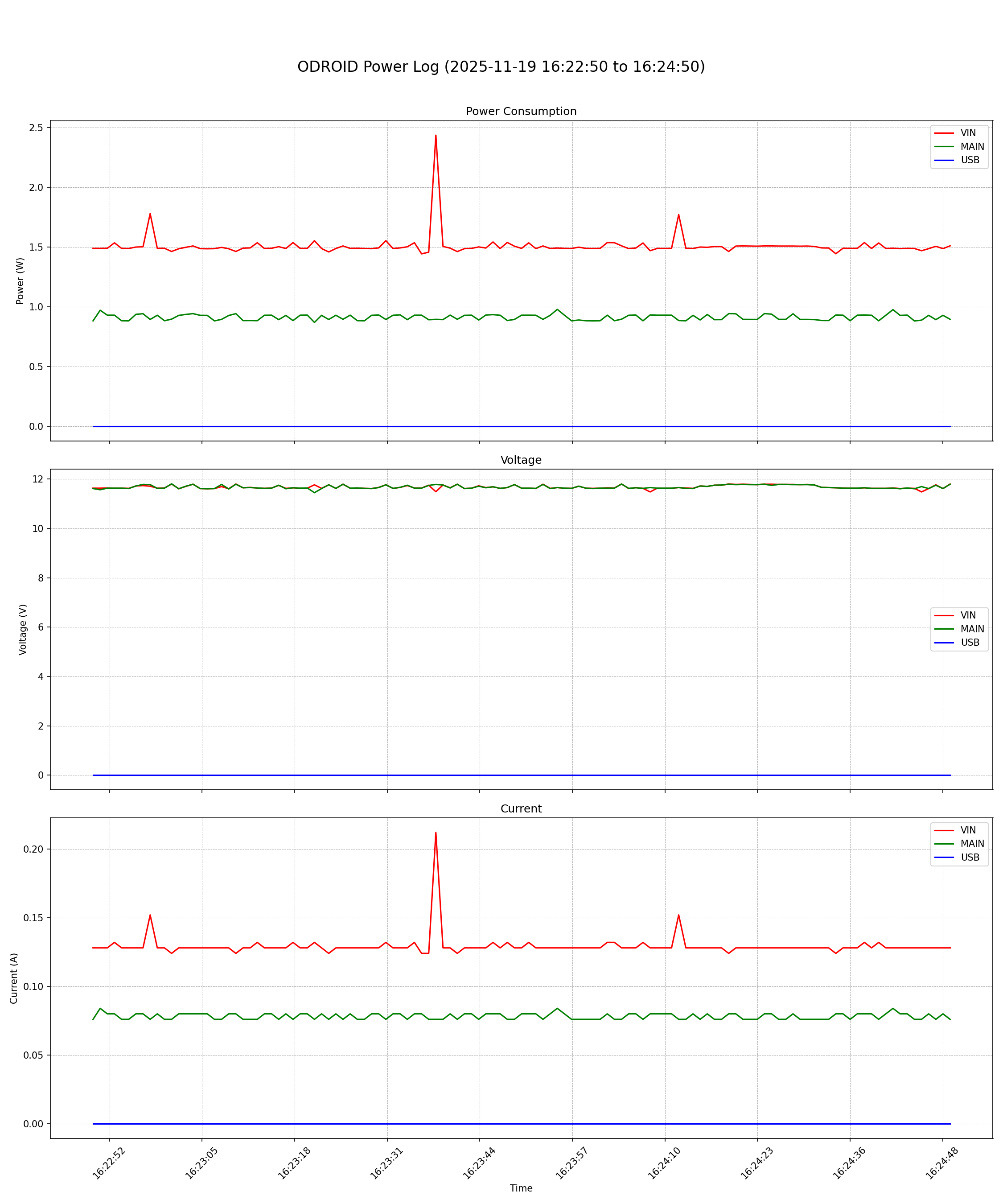

Plot data
python3 csv_2_plot.py test.csv plot.png [--type power voltage current] [--source vin main usb]
