Settings

Warning

Wi-Fi and IP related settings will restart the Wi-Fi service. After applying the settings, you may need to reconnect to the page.

Please be careful when applying settings. Incorrect settings may prevent you from connecting to the device. If you have problems with the device settings, connect the debug USB-C connector to check the device's logs. If necessary, you can re-update the firmware to initialize the device.

Connect to Wi-Fi

The device boots in APSTA mode by default and services the following AP.

• SSID: powermate
• Password: hardkernel

After connecting to the above AP using a smartphone, etc., you can configure the device by accessing the http://192.168.4.1 address.

Warning

A warning that the AP does not have internet may appear. Please press Allow connection to connect to the device.

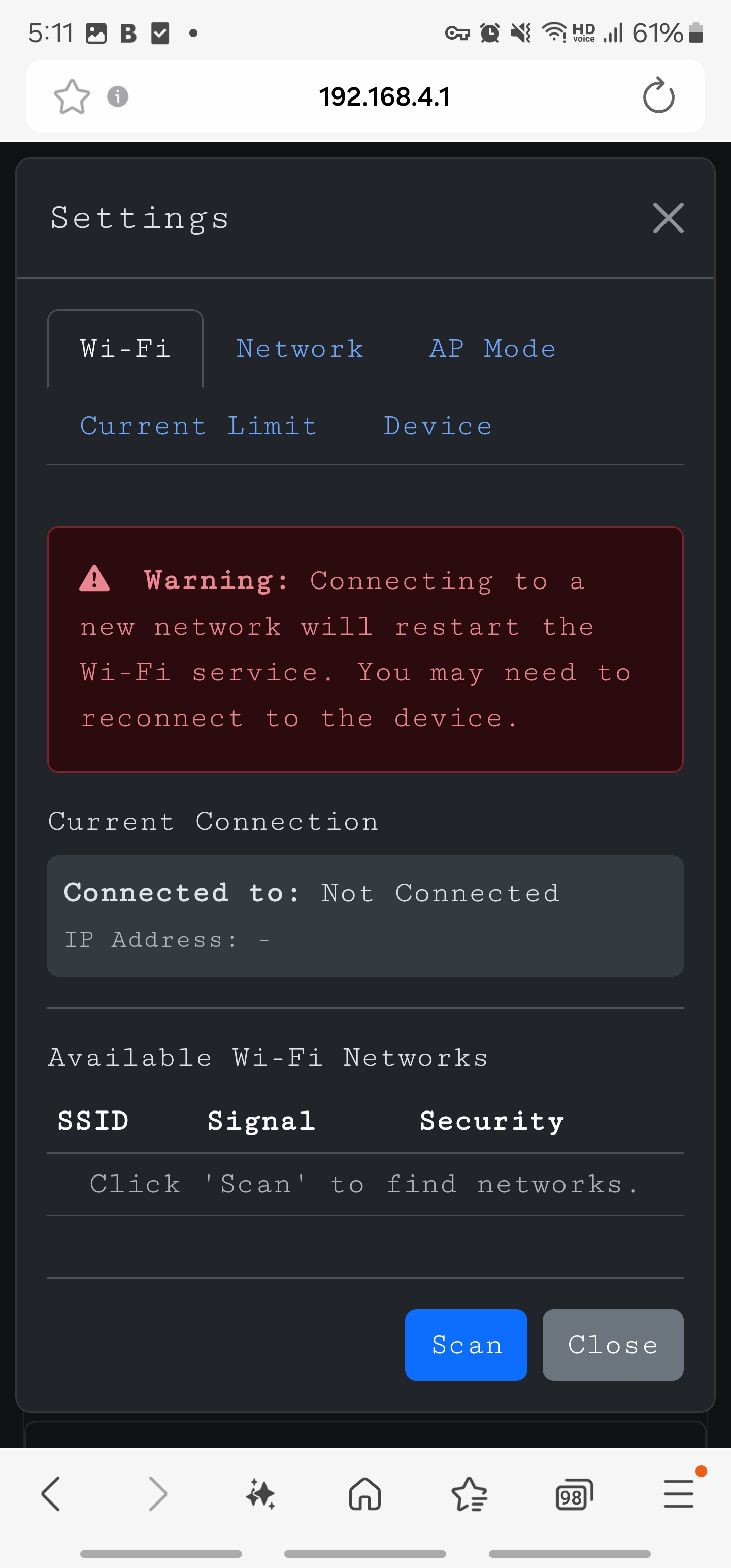

You can open the settings window by pressing the gear button at the top. Press the Scan button to see a list of nearby APs.

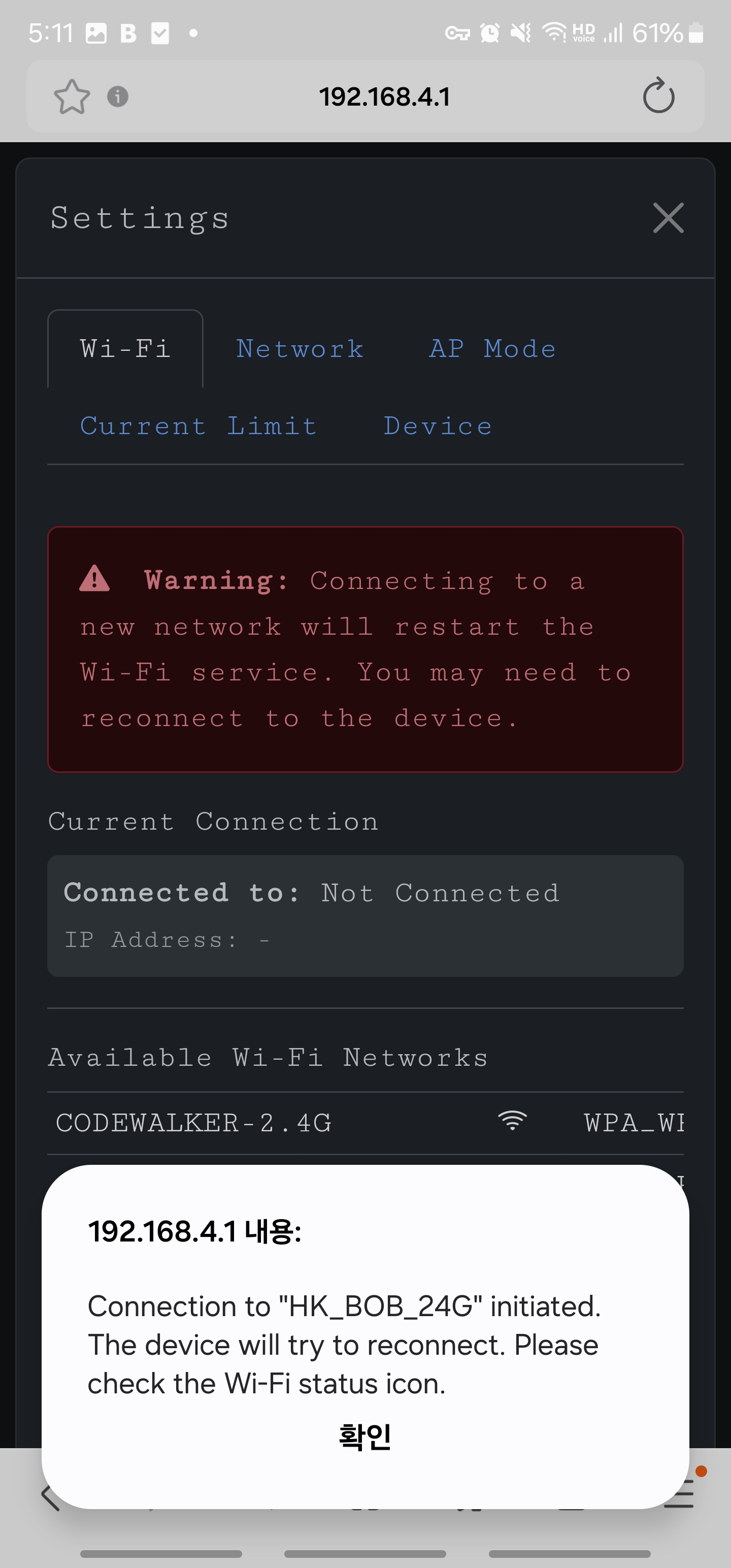

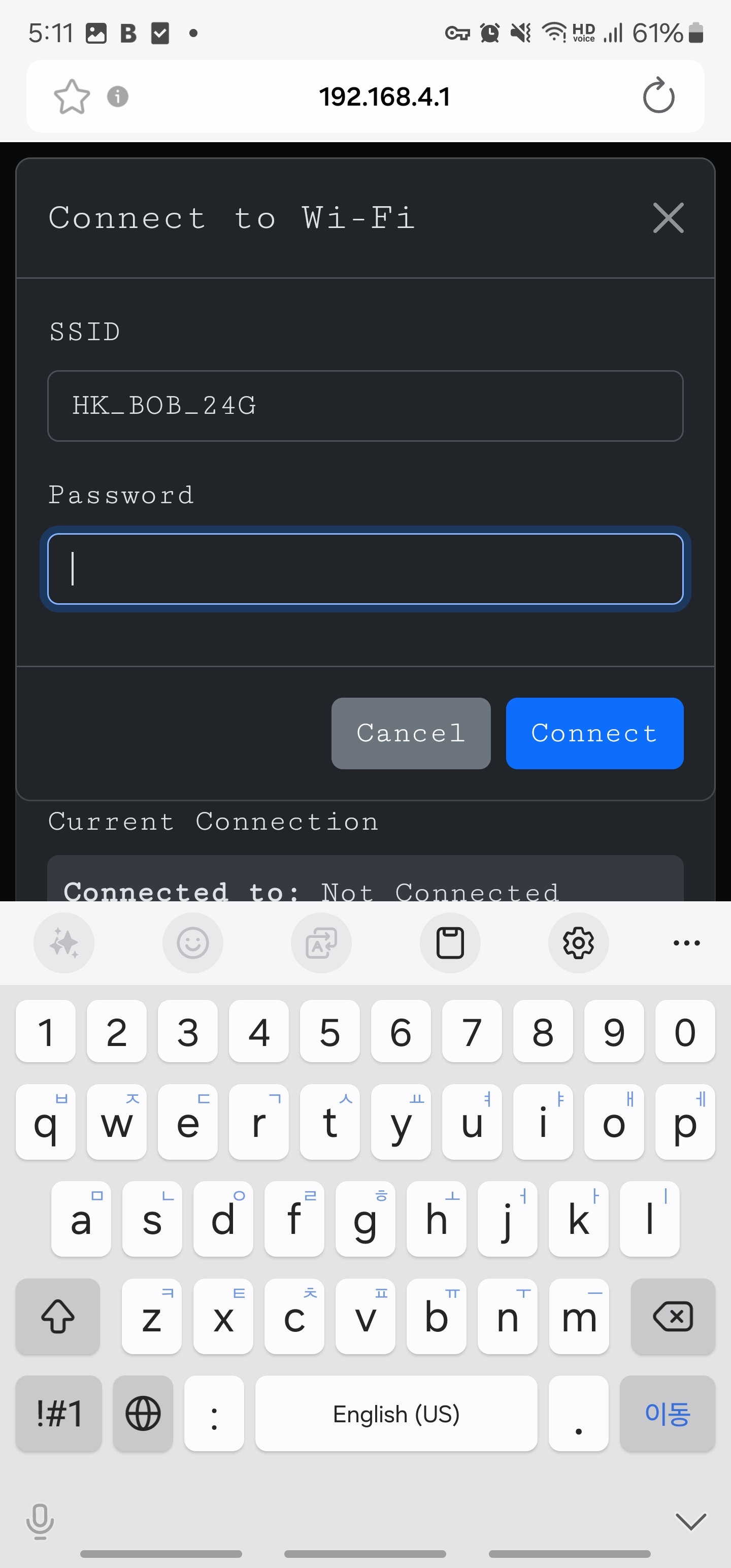

After entering the password, press the Connect button and PowerMate will attempt to connect to the AP. For public APs, leave the Password blank.

When Wi-Fi is connected, the green SSID name appears at the top of the page.

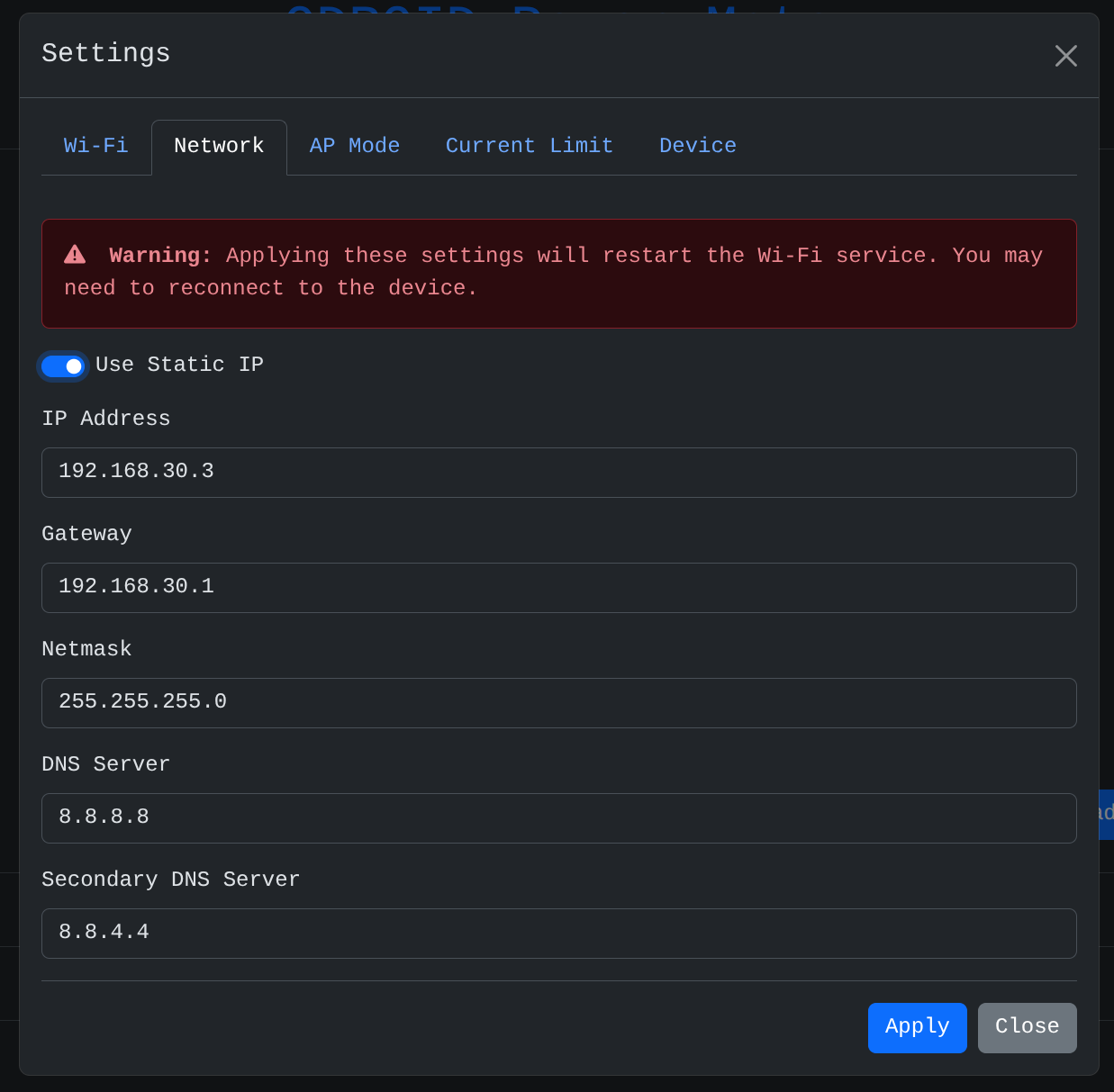

Set static ip

You can assign the IP of the device yourself. You can set the IP directly by turning on the Use Static IP toggle in the Network tab.

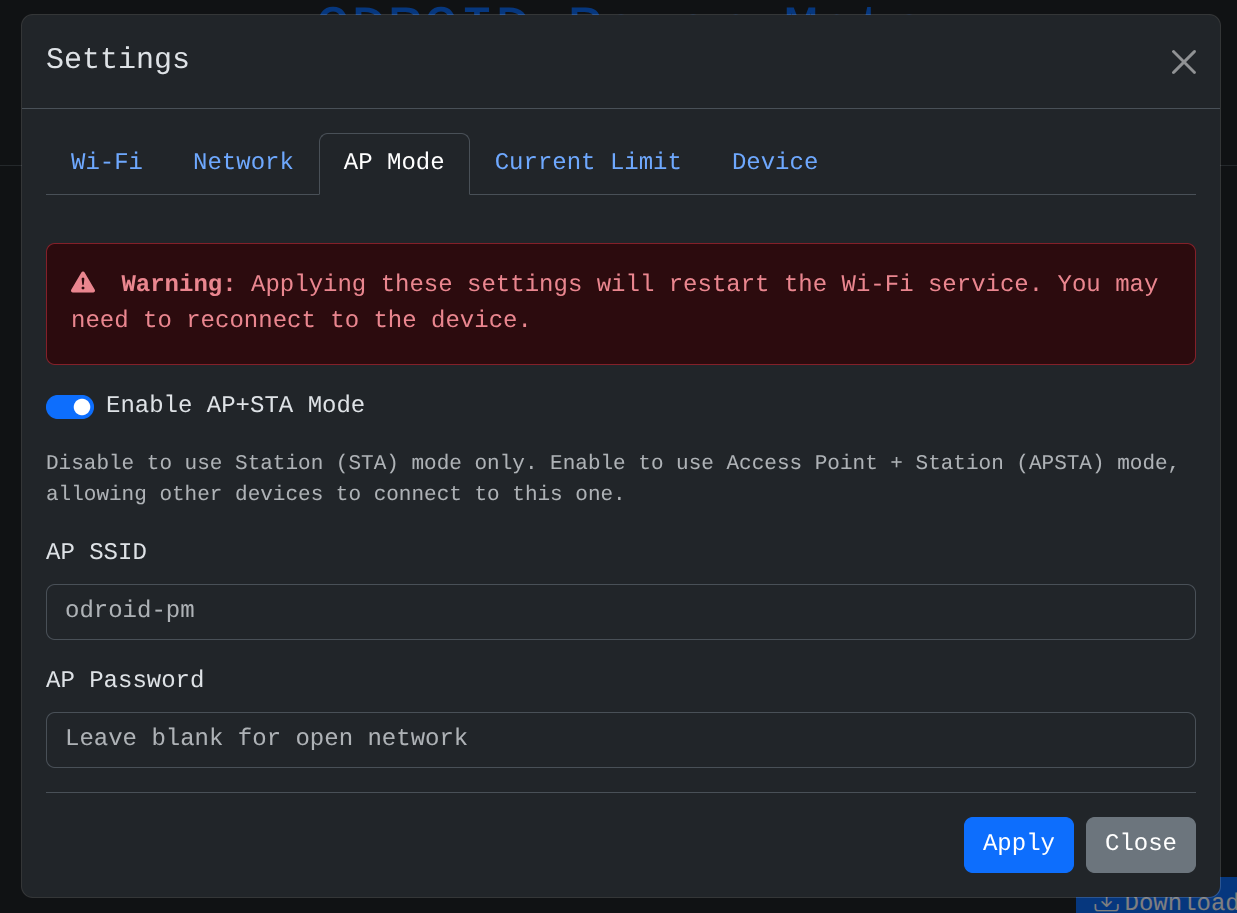

AP Mode

Configure the AP function of PowerMate.

If you do not need the AP service, it is recommended to disable it.

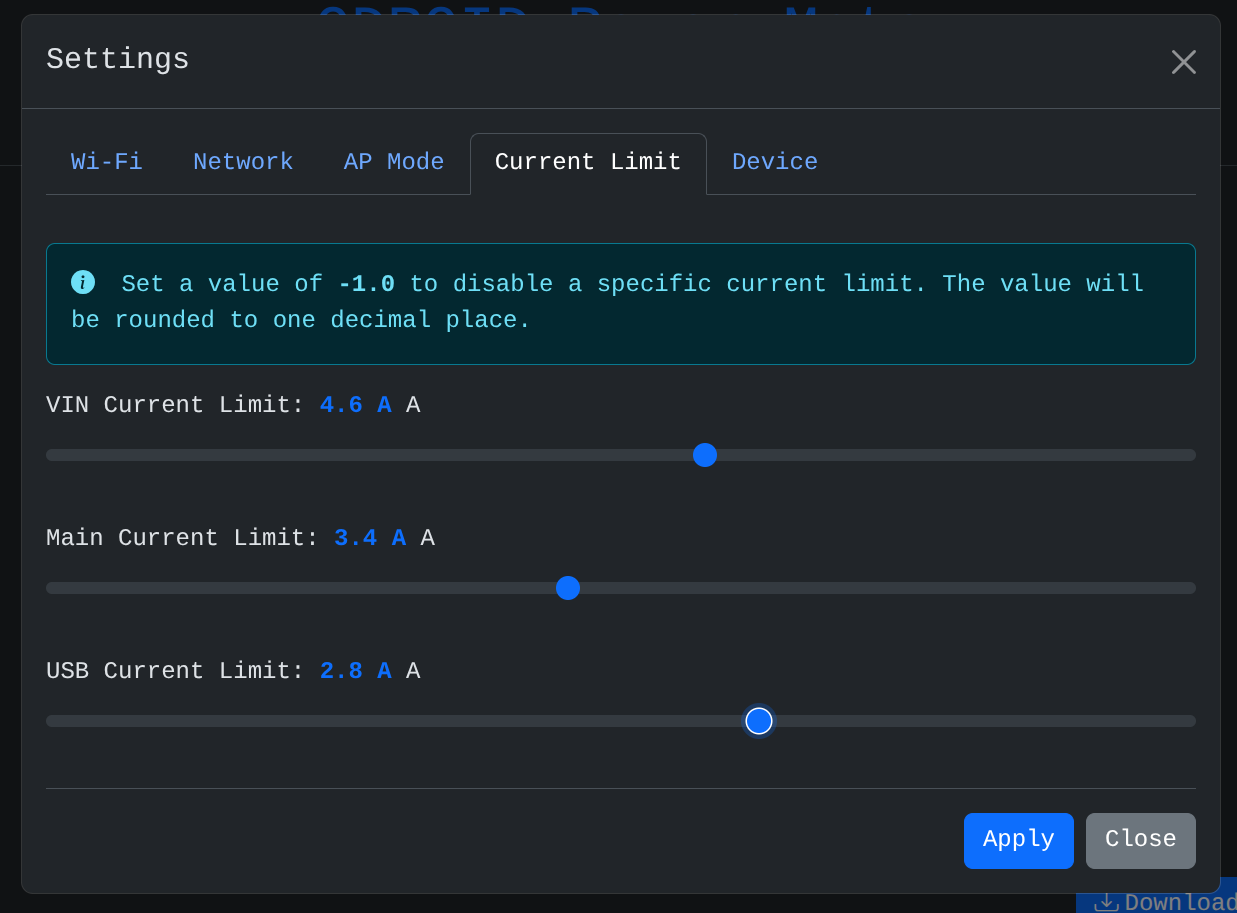

Current Limit

Monitors the current of PowerMate, and if a value higher than the set current is detected, all load switches are turned off.

Device

Sets the UART Baudrate. Please match it with the baudrate of the connected ODROID.

ODROID	Baud rate
ODROID-C4	115200
ODROID-C5	921600
ODROID-M1/M1S/M2	1500000
ODROID-H3/4	According to user settings

You can reboot the PowerMate. The state of the load switch does not change due to rebooting.
