SBC Case Builder

Introduction

This project is about autonomous SBC case creation. It utilizes the SBC Model Framework project to automatically generate cases based on the data for any given SBC contained within the framework. It uses the Customizer for a graphical user interface for all case attributes. Cases can be created, saved, recalled and edited using the graphical interface after enabling the customizer in the OpenSCAD menu view. License: GPLv3.

Install

  git clone https://github.com/hominoids/SBC_Case_Builder.git
  cd SBC_Case_Builder
  git submodule init
  git submodule update

Notes

More information can be found at this Hard Kernel forum thread

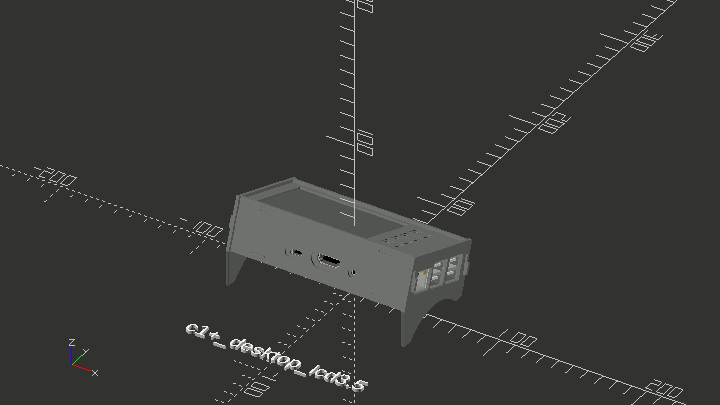

Case Designs and Styles

The case naming convention for standard cases in the configuration file follow the basic form of “sbc””design””style” e.g. c4_shell or c4_tray_vu5.

Current Case Count 368

Hardkernel

Odorid-C1+ cases - 16 : c1+_shell,c1+_panel,c1+_panel_lcd3.5,c1+_desktop_lcd3.5,c1+_stacked,c1+_tray,c1+_tray_sides,c1+_tray_vu5, c1+_tray_vu7,c1+_shell_boombox,c1+_panel_boombox,c1+_tray_boombox,c1+_round,c1+_hex,c1+_snap,c1+_fitted

Odorid-C2 cases - 17 : c2_shell,c2_panel,c2_panel_lcd3.5,c2_desktop_lcd3.5,c2_stacked,c2_tray,c2_tray_sides,c2_tray_vu5, c2_tray_vu7,c2_shell_boombox,c2_panel_boombox,c2_deskboom_lcd3.5,c2_tray_boombox,c2_round,c2_hex,c2_snap,c2_fitted

Odorid-C4 cases - 17 : c4_shell,c4_panel,c4_panel_lcd3.5,c4_desktop_lcd3.5,c4_stacked,c4_tray,c4_tray_sides,c4_tray_vu5, c4_tray_vu7,c4_shell_boombox,c4_panel_boombox,c4_deskboom_lcd3.5,c4_tray_boombox,c4_round,c4_hex,c4_snap,c4_fitted

Odorid-HC4 cases - 15 : hc4_shell,hc4_shell_drivebox2.5,hc4_shell_drivebox2.5v,hc4_shell_drivebox3.5,hc4_panel,hc4_stacked ,hc4_tray,hc4_tray_sides,hc4_tray_vu5,hc4_tray_vu7,hc4_tray_drivebox2.5,hc4_round,hc4_hex,hc4_snap,hc4_fitted

Odorid-N1 cases - 11 : n1_shell,n1_panel,n1_stacked,n1_tray,n1_tray_sides,n1_tray_vu5,n1_tray_vu7,n1_round,n1_hex,n1_snap,n1_fitted

Odorid-N2 cases - 9 : n2_panel,n2_tray,n2_tray_sides,n2_tray_vu5,n2_tray_vu7,n2_round,n2_hex,n2_snap,n2_fitted

Odorid-N2+ cases - 9 :n2+_panel,n2+_tray,n2+_tray_sides,n2+_tray_vu5,n2+_tray_vu7,n2+_round,n2+_hex,n2+_snap,n2+_fitted

Odorid-XU4 cases - 11 : xu4_shell,xu4_panel,xu4_stacked,xu4_tray,xu4_tray_sides,xu4_tray_vu5,xu4_tray_vu7,xu4_round,xu4_hex,xu4_snap,xu4_fitted

Odorid-XU4Q cases - 11 : xu4q_shell,xu4q_panel,xu4q_stacked,xu4q_tray,xu4q_tray_sides,xu4q_tray_vu5,xu4q_tray_vu7,xu4q_round,xu4q_hex,xu4q_snap,xu4q_fitted

Odroid-H2 cases - 17 : h2_shell,h2_lowboy,h2_lowboy_router,h2_shell_router,h2_shell_routerssd,h2_panel,h2_stacked,h2_tray,h2_tray_sides, h2_tray_vu5,h2_tray_vu7,h2_tray_router,h2_router_station,h2_round,h2_hex,h2_snap,h2_fitted

Odroid-Show2 cases - 1 : show2_shell

Pine64

Rock64 - 9 : rockp64_shell,rock64_panel,rock64_stacked,rock64_tray,rock64_tray_sides,rock64_round,rock64_hex,rock64_snap,rock64_fitted

RockPro64 - 9 : rockpro64_shell,rockpro64_panel,rockpro64_stacked,rockpro64_tray,rockpro64_tray_sides,rockpro64_round,rockpro64_hex,rockpro64_snap,rockpro64_fitted

Raspberry PI

RPIzero - 9 : rpizero_shell,rpizero_panel,rpizero_stacked,rpizero_tray,rpizero_tray_sides,rpizero_round,rpizero_hex,rpizero_snap,rpizero_fitted

RPIzero2w+ - 9 : rpizero2w_shell,rpizero2w_panel,rpizero2w_stacked,rpizero2w_tray,rpizero2w_tray_sides,rpizero2w_round,rpizero2w_hex,rpizero2w_snap,rpizero2w_fitted

RPI1a+ - 9 : rpi1a+_shell,rpi1a+_panel,rpi1a+_stacked,rpi1a+_tray,rpi1a+_tray_sides,rpi1a+_round,rpi1a+_hex,rpi1a+_snap,rpi1a+_fitted

RPI1b+ - 9 : rpi1b+_shell,rpi1b+_panel,rpi1b+_stacked,rpi1b+_tray,rpi1b+_tray_sides,rpi1b+_round,rpi1b+_hex,rpi1b+_snap,rpi1b+_fitted

RPI3a+ - 9 : rpi3a+_shell,rpi3a+_panel,rpi3a+_stacked,rpi3a+_tray,rpi3a+_tray_sides,rpi3a+_round,rpi3a+_hex,rpi3a+_snap,rpi3a+_fitted

RPI3b - 9 : rpi3b_shell,rpi3b_panel,rpi3b_stacked,rpi3b_tray,rpi3b_tray_sides,rpi3b_round,rpi3b_hex,rpi3b_snap,rpi3b_fitted

RPI3b+ - 9 : rpi3b+_shell,rpi3b+_panel,rpi3b+_stacked,rpi3b+_tray,rpi3b+_tray_sides,rpi3b+_round,rpi3b+_hex,rpi3b+_snap,rpi3b+_fitted

RPI4b - 9 : rpi4b_shell,rpi4b_panel,rpi4b_stacked,rpi4b_tray,rpi4b_tray_sides,rpi4b_round,rpi4b_hex,rpi4b_snap,rpi4b_fitted

Nivida

Jetson Nano - 9 : jetsonnano_shell,jetsonnano_panel,jetsonnano_stacked,jetsonnano_tray,jetsonnano_tray_sides,jetsonnano_round,jetsonnano_hex,jetsonnano_snap,jetsonnano_fitted

Radxa

ROCKPi 4b+ - 9 : rockpi4b+_shell,rockpi4b+_panel,rockpi4b+_stacked,rockpi4b+_tray,rockpi4b+_tray_sides,rockpi4b+_round,rockpi4b+_hex,rockpi4b+_snap,rockpi4b+_fitted ROCKPi 4c - 9 : rockpi4c_shell,rockpi4c_panel,rockpi4c_stacked,rockpi4c_tray,rockpi4c_tray_sides,rockpi4c_round,rockpi4c_hex,rockpi4c_snap,rockpi4c_fitted ROCKPi 4c+ - 9 : rockpi4c+_shell,rockpi4c+_panel,rockpi4c+_stacked,rockpi4c+_tray,rockpi4c+_tray_sides,rockpi4c+_round,rockpi4c+_hex,rockpi4c+_snap,rockpi4c+_fitted

Khadas

Vim1 - 9 : vim1_shell,vim1_panel,vim1_stacked,vim1_tray,vim1_tray_sides,vim1_round,vim1_hex,vim1_snap,vim1_fitted Vim2 - 9 : vim2_shell,vim2_panel,vim2_stacked,vim2_tray,vim2_tray_sides,vim2_round,vim2_hex,vim2_snap,vim2_fitted Vim3 - 9 : vim3_shell,vim3_panel,vim3_stacked,vim3_tray,vim3_tray_sides,vim3_round,vim3_hex,vim3_snap,vim3_fitted Vim3l - 9 : vim3l_shell,vim3l_panel,vim3l_stacked,vim3l_tray,vim3l_tray_sides,vim3l_round,vim3l_hex,vim3l_snap,vim3l_fitted Vim4 - 9 : vim4_shell,vim4_panel,vim4_stacked,vim4_tray,vim4_tray_sides,vim4_round,vim4_hex,vim4_snap,vim4_fitted

Asus

Tinkerboard - 9 : tinkerboard_shell,tinkerboard_panel,tinkerboard_stacked,tinkerboard_tray,tinkerboard_tray_sides,tinkerboard_round,tinkerboard_hex,tinkerboard_snap,tinkerboard_fitted

Tinkerboard S - 9 : tinkerboard-s_shell,tinkerboard_panel,tinkerboard-s_stacked,tinkerboard-s_tray,tinkerboard-s_tray_sides,tinkerboard-s_round,tinkerboard-s_hex,tinkerboard-s_snap,tinkerboard-s_fitted

Tinkerboard 2/2S - 9 : tinkerboard-2_shell,tinkerboard-2_panel,tinkerboard-2_stacked,tinkerboard-2_tray,tinkerboard-2_tray_sides,tinkerboard-2_round,tinkerboard-2_hex,tinkerboard-2_snap,tinkerboard-2_fitted

Tinkerboard R2/R2S - 9 : tinkerboard-r2_shell,tinkerboard-r2_panel,tinkerboard-r2_stacked,tinkerboard-r2_tray,tinkerboard-r2_tray_sides,tinkerboard-r2_round,tinkerboard-r2_hex,tinkerboard-r2_snap,tinkerboard-r2_fitted

Orange PI

OPI Zero/ZeroPlus - 9 : opizero_shell,opizero_panel,opizero_stacked,opizero_tray,opizero_tray_sides,opizero_round,opizero_hex,opizero_snap,opizero_fitted

OPI Zero2 - 9 : opizero2_shell,opizero2_panel,opizero2_stacked,opizero2_tray,opizero2_tray_sides,opizero2_round,opizero2_hex,opizero2_snap,opizero2_fitted

OPI R1PlusLTS - 9 : opir1plus_lts_shell,opir1plus_lts_panel,opir1plus_lts_stacked,opir1plus_lts_tray,opir1plus_lts_tray_sides,opir1plus_lts_round,opir1plus_lts_hex,opir1plus_lts_snap,opir1plus_lts_fitted

Case and Accessory Schema

The schema for case configuration and accessories is documented in the beginning of the file sbc_case_builder.cfg. It has not been finalized and may be subject to changes in the near future as development in these areas is ongoing. Here is a review of the current schema which will be updated as needed for each release. The schema is divided into two areas, case and accessories. There are 30 fixed entries that describe any given case followed by an unlimited number of accessory entries each containing 14 entries.

schema:

"case_name","sbc_model","case_design","case_style",
pcb_loc_x,pcb_loc_y,pcb_loc_z,case_offset_x,case_offset_y,case_offset_tz,case_offset_bz,
wallthick,floorthick,sidethick,gap,fillet,
indents,sidewall_support,sbc_top_standoffs,sbc_bottom_standoffs,case_ext_standoffs,mode
sata_punchout,"gpio_opening","cooling","exhaust_vents",
top_standoff[    6.75,     // diameter
                   18,     // height (top_height)
                  2.5,     // holesize
                   10,     // supportsize
                    4,     // supportheight
                    4,     // 0=none, 1=countersink, 2=recessed hole, 3=nut holder, 4=blind hole
                    0,     // standoff style 0=hex, 1=cylinder
                    1,     // enable reverse standoff
                    0,     // enable insert at top of standoff
                  4.5,     // insert hole dia. mm
                  5.1],    // insert depth mm
bottom_standoff[ 6.75,     // diameter
                    5,     // height (bottom_height-pcb_z)
                  3.6,     // holesize
                   10,     // supportsize
                    4,     // supportheight
                    1,     // 0=none, 1=countersink, 2=recessed hole, 3=nut holder, 4=blind hole
                    0,     // standoff style 0=hex, 1=cylinder
                    0,     // enable reverse standoff
                    0,     // enable insert at top of standoff
                  4.5,     // insert hole dia. mm
                  5.1],    // insert depth mm
top_ext_standoff[    6.75, // diameter
                   18,     // height (top_height)
                  2.5,     // holesize
                   10,     // supportsize
                    4,     // supportheight
                    4,     // 0=none, 1=countersink, 2=recessed hole, 3=nut holder, 4=blind hole
                    0,     // standoff style 0=hex, 1=cylinder
                    1,     // enable reverse standoff
                    0,     // enable insert at top of standoff
                  4.5,     // insert hole dia. mm
                  5.1],    // insert depth mm
bottom_ext_standoff[ 6.75, // diameter
                    5,     // height (bottom_height-pcb_z)
                  3.6,     // holesize
                   10,     // supportsize
                    4,     // supportheight
                    1,     // 0=none, 1=countersink, 2=recessed hole, 3=nut holder, 4=blind hole
                    0,     // standoff style 0=hex, 1=cylinder
                    0,     // enable reverse standoff
                    0,     // enable insert at top of standoff
                  4.5,     // insert hole dia. mm
                  5.1],    // insert depth mm

"class","type",loc_x,loc_y,loc_z,face,rotation[x,y,z],parametrics[association,x,y,z],size_x,size_y,size_z,data_1,data_2,"data_3",data_4[]

Fixed Schema Entries The 30 fixed schema entries are self-evident based on their name.

case_name = “case_name”
sbc_model = any sbc from sbc model framework: "c1+","c2","c4"...
case_design = "shell", "panel", "stacked", "tray"
case_style = “style” of case_design (tray: none, vu5, vu7)
pcb_loc_x = sbc location x axis
pcb_loc_y = sbc location y axis
pcb_loc_z = sbc location z axis
case_offset_x = additional case x axis size
case_offset_y = additional case y axis size
case_offset_tz = additional case top z axis size
case_offset_bz = additional case bottom z axis size
wallthick = case wall thickness
floorthick = case floor thickness
sidethick = case side thickness
gap = distance between pcb and case
fillet = edge fillets
indents = enable indentations around io openings (true or false)
sidewall_support = enable wall support for standoffs (true or false)
sbc_top_standoffs = enable sbc top standoffs (true or false)
sbc_bottom_standoffs = enable sbc bottom standoffs (true or false)
case_ext_standoffs = enable case extended standoffs (true or false)
sata_punchout = enable sata punchout (true or false)
gpio_opening = gpio openings "none","vent","open","punchout"
cooling = "none", "vents", "fan", "custom" using ./dxf/customfan.dxf
exhaust_vents = exhaust vents "none","vent"
top_standoff[] = top pcb standoffs
bottom_standoff[] = bottom pcb standoffs
top_ext_standoff[] = top extended standoffs
bottom_ext_standoff[] = bottom extended standoffs
mode = special mode "net_card"

Accessories Configuration Entries

The accessories entries need more explanation because of their input variability. For accessories there are 6 classes, “add1”,“sub”,”suball”,”add2”,”model”,”platter” and all use the same command format for various “type”.

"class","type",loc_x,loc_y,loc_z,size_x,size_y,size_z,"face",rotation[],parametrics[],data_1,data_2,"data_3",data_4[]

e.g.

"sub","rectangle",3,78,-.1,8,8,5,"bottom",[0,0,0,],["sbc",true,true,true],0,0,"",[1,1,1,1]

Every type, regardless of it’s class, uses a basic set of variables(loc_x,loc_y,loc_z,”face”,rotation[],parametrics[]) but each type doesn’t necessarily use all available data fields(size_x,size_y,size_z,data_1,data_2,”data_3”,data_4[]). “add1” and “add2” are used to add geometry to the case. The difference is when the addition occurs. “add1” happens at the beginning when the core case geometry is created and add2 happens after all subtractions have occurred. “suball” is used to affect all faces of a case, not just “face”. The “face” is the case piece that will be effected by the addition or subtraction. The "model" type is for placing supporting accessories in the model view. e.g. hard drives, fans. The "platter" type is for adding supporting accessories to the print platter.

The parametric array specifies the axis to enable for associated parametric positoning. An accessory can be associated with the sbc position("sbc"), case offset("case") or uses absolute values if all axises are false

classes: add1, sub, suball, add2, model, platter

additive type: circle, rectangle, slot, text, art, standoff, batt_holder, uart_holder, hd_holder, hd_holes, hd_vertright_holes, hc4_oled_holder, access_port, button, pcb_holder, boom_grill, boom_speaker_holder

subtractive type: circle, rectangle, slot, text, art, punchout, vent, fan, hd_holes, hd_vertleft_holes, hd_vertright_holes, microusb, sphere

model type: uart_strap, fan_cover, hd25, hd35, hc4_oled, feet, access_cover, net_card, hk35_lcd, hk_boom, boom_speaker, boom_vring, hk_uart

platter type: uart_strap, fan_cover, access_cover, button_top, boom_vring

Shared add and sub “type” commands

circle description: circlular geometry. uses: size_x=dia, size_z=height

rectangle description: rectangular geometry with individual defined corner fillets. Radius1 is lower left corner then moves clockwise. uses: size_x, size_y, size_z, data_4=[radius1, radius2, radius3, radius4]

slot description: slot geometry. uses: size_x=diameter, size_y=length, size_z=height

text description: raised or sunk text uses: data_1=size, data_3="text"

art description: art work in dxf or svg format uses: data_1=scale, data_2=height, data_3=file

Add class only “types”

uart_holder description: console uart holder uses: none

batt_holder description: rtc battery holder uses: none

standoff description: user defined standoff uses: data_4= [ 6.75, // radius 5, // height 3.6, // holesize 10, // supportsize 4, // supportheight 1, // 0=none, 1=countersink, 2=recessed hole, 3=nut holder, 4=blind hole 0, // standoff style 0=hex, 1=cylinder 0, // enable reverse standoff 0, // enable insert at top of standoff 4.5, // insert hole dia. mm 5.1] // insert depth mm

hd_holder description: double stacked holder for 2.5 and 3.5 drives uses: data_1=2.5 or 3.5, data_3=”portrait” or “landscape”

hd_vertleft_holder description: vertical left side holder for 2.5 and 3.5 drives uses: data_1=2.5 or 3.5, data_3=”portrait” or “landscape”

hd_vertright_holder description: vertical right side holder for 2.5 and 3.5 drives uses: data_1=2.5 or 3.5, data_3=”portrait” or “landscape”

hc4_oled_holder description: hc4 oled holder uses: size_z=floorthick

access_port description: bottom access for sd and emmc uses: size_z=floorthick, data_3=”portrait” or “landscape”

button description: button top and plunger uses: size_x=diameter,size_z=height, data_3=”reccess”

pcb_holder description: pcb bottom edge holder uses: size_x=pcb_x,size_y=pcb_y,size_z=pcb_z, data_1=wall_thick

boom_grill description: hk boom bonnet grill covers uses: data_3="flat", "dome", "frame"

boom_speaker_holder description: hk boom bonnet speaker friction holder uses: data_1=tolorence

Sub class only “types”

punchout description: punchout in rectangle, round or slot shape uses: size_x=width, size_y=depth, data_1=gap, size_z=thick, data_2=fillet, data_3="rectangle","round" or "slot"

vent description: horizontal or vertical vent openings uses: size_x=open_width, size_y=open_length, size_z=thick, data_4=gap, data_1=rows, data_3=columns, data_3=orientation("vertical","horizontal")

fan description: fan opening uses: size_x=size, size_z=thick, date_1=style(1=open,2=fan)

hd_holes description: bottom hole pattern for 2.5 or 3.5 drives uses: data_1=2.5 or 3.5, data_2=thick, data_3=”portrait” or “landscape”

hd_vertleft_holes description: bottom hole pattern for 2.5 or 3.5 drives uses: data_1=2.5 or 3.5, data_2=thick, data_3=”portrait” or “landscape”

hd_vertright_holes description: bottom hole pattern for 2.5 or 3.5 drives uses: data_1=2.5 or 3.5, data_2=thick, data_3=”portrait” or “landscape”-component mask(incomplete)

microusb description: micro usb opening uses: none

sphere description: sphere subtraction uses: size_x=diameter

Model class “types”

uart_strap description: console uart holder strap uses: none

fan_cover description: cover for fan hole opening uses: size_x=40 or 80, size_z=thick

hd25 description: 2.5 hard drive uses: data_1=height

hd35 description: 3.5 hard drive uses: none

hc4_oled description: hc4_oled model uses: none

feet description: case feet uses: size_x=diameter, size_z=height

access_cover description: bottom access cover for sd and emmc uses: size_z=floorthick, data_3=”portrait” or “landscape”

button_top description: button top and plunger uses: size_x=diameter,size_z=height, data_3=”reccess”

h2_netcard description: h2 network card model uses: none

hk_lcd35 description: hk 3.5 inch lcd model uses: none

hk_boom description: hk stereo boom bonnet model uses: data_1=speakers(true or false), data_3=”front” or "rear"

boom_speaker description: hk stereo boom bonnet speaker uses: data_1=pcb(true or false), data_3=”left” or "right"

hk_speaker description: hk speaker model uses: none

boom_vring description: hk stereo boom bonnet volume wheel extention uses: data_1=tolerence

hk_uart description: hk console uart model uses: none

Platter class “types”

uart_strap description: console uart holder strap uses: none

fan_cover description: cover for fan hole opening uses: size_x=40 or 80, size_z=thick

access_cover *description:*bottom access cover for sd and emmc uses: size_z=floorthick, data_3=”portrait” or “landscape”

button_top description: button top and plunger uses: size_x=diameter,size_z=height, data_3=”reccess”

boom_vring description: hk stereo boom bonnet volume wheel extention uses: data_1=tolerence
